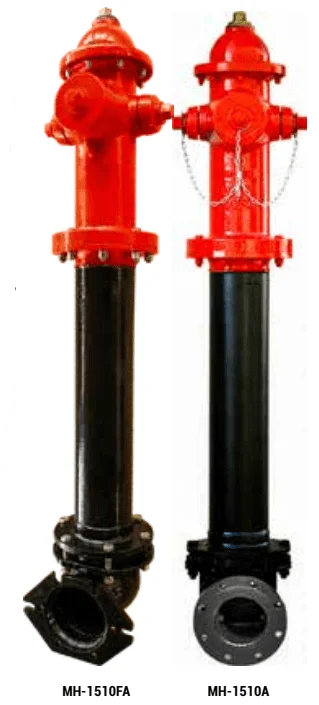

DRY BARREL FIRE HYDRANT

MODEL: MH-1510FA/MH-1510A

  • Brand Name: APC
  • Conforms: ANSI / AWWA C502 Standard
  • Connections: Flanged Ends (ANSI B16.2 Class 150)”
  • Approvals: UL & FM
  • Maximum Working Temperature: 0.6°C to 52°C
  • 250 psig Working pressure, 500 psi testing pressure as per UL246
  • 250 psig Working pressure, 500 psi testing pressure as per FM1510
  • Secured by the stainless steel safety stem coupling and hydrant prevent traffic damage by pulling out if hit by a vehicle preventing damage to the main valve and stem
  • Efficient hydraulic design provides optimum performance and maximum flow
  • Threaded and field replaceable hose nozzles and pumper outlet
  • Easily removable main valve from either the bonnet or grounded line flange
  • 360° nozzle section rotation
  • Field replaceable nozzles secured with external stainless steel lock screw
  • Fusion bonded epoxy coated interior and exterior RAL3000 conforms to AWWA C550
  • Coated by AKZO NOBEL Resicoat® R2-ES Code: HGF29H Electrostatic Spray
  • Seating type is resilient material to bronze seal construction
  • Dual Bronze drain ways
  • One pumper nozzle, 4.5-4NH thread, Two hoses nozzles, 2.5-7.5NH thread, other size threads are available
  • 6” mechanical joint designed to ANSI/AWWA C153/A21.53. Flanged to ANSI 125/EN 1092-2 PN16/ANSI B16.42 Class 150

×
